ATEN CS1942DP KVM switch Black
2-Port USB 3.0 4K DisplayPort Dual Display KVMP™ Switch
- Delivered by tomorrow (order Mon-Fri Delivery times 07:00 - 17:00) *T&C's Apply
- Including shipping costs on orders over R1500
- Major Cities: 2 to 5 working days
Outlying areas: 5-9 working days
- 7 days to change your mind and free returns *T&C's Apply
- Excellent customer service
Description
The ATEN CS1942DP desktop KVM switch helps organize your desktop. Especially when managing a multimedia workstation at a large organization, CS1942DP provides you with instant access to two or four computers, all through a single USB keyboard, USB mouse and two DisplayPort monitors.
Advanced video support provides a better-defined DisplayPort connection with video resolutions up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz). Incorporating dual display capability, you are allowed to enjoy a wider screen and easily switch between two or four DisplayPort systems. In addition, featuring a built-in USB 3.1 Gen 1 hub, the CS1942DP delivers unprecedented data transfer rates up to 5 Gbps, allowing you to maximize multimedia operations.
Engineered to meet the ever-increasing demand for dual display, ultra-fast data transmission rates, and lossless 4K video resolution, the CS1942DP is specifically designed for where multitasking is needed such as design, financial trading, and video post production.
Note:
As is common with DisplayPort KVM switches, switching between KVM ports in an Extended Desktop setup may cause windows open on the extended desktop to be resized/repositioned back to a default configuration on the main display. This is due to the nature of the DisplayPort protocol and may require a manual readjustment.
Additional information
| Number of computers controlled | 2 |
|---|---|
| Brand | Aten |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DC-in jack | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| Rack mounting | No |
| Product colour | Black |
| Housing material | Metal |
| Built-in display | No |
| Operating temperature (T-T) | 0 – 50 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating relative humidity (H-H) | 0 – 80% |
| Width | 156.6 mm |
| Depth | 335 mm |
| Height | 44 mm |
| Weight | 1.54 kg |
| Harmonized System (HS) code | 85176200 |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| Console USB ports quantity | 2 |
| HD type | 4K Ultra HD |
| Video bandwidth | 60 Hz |
| Push button | Yes |
| Hot keys | Yes |
| Power source | DC |
| Scan interval | 1,5,99 s |
| Manual | Yes |
| Firmware upgradeable | Yes |

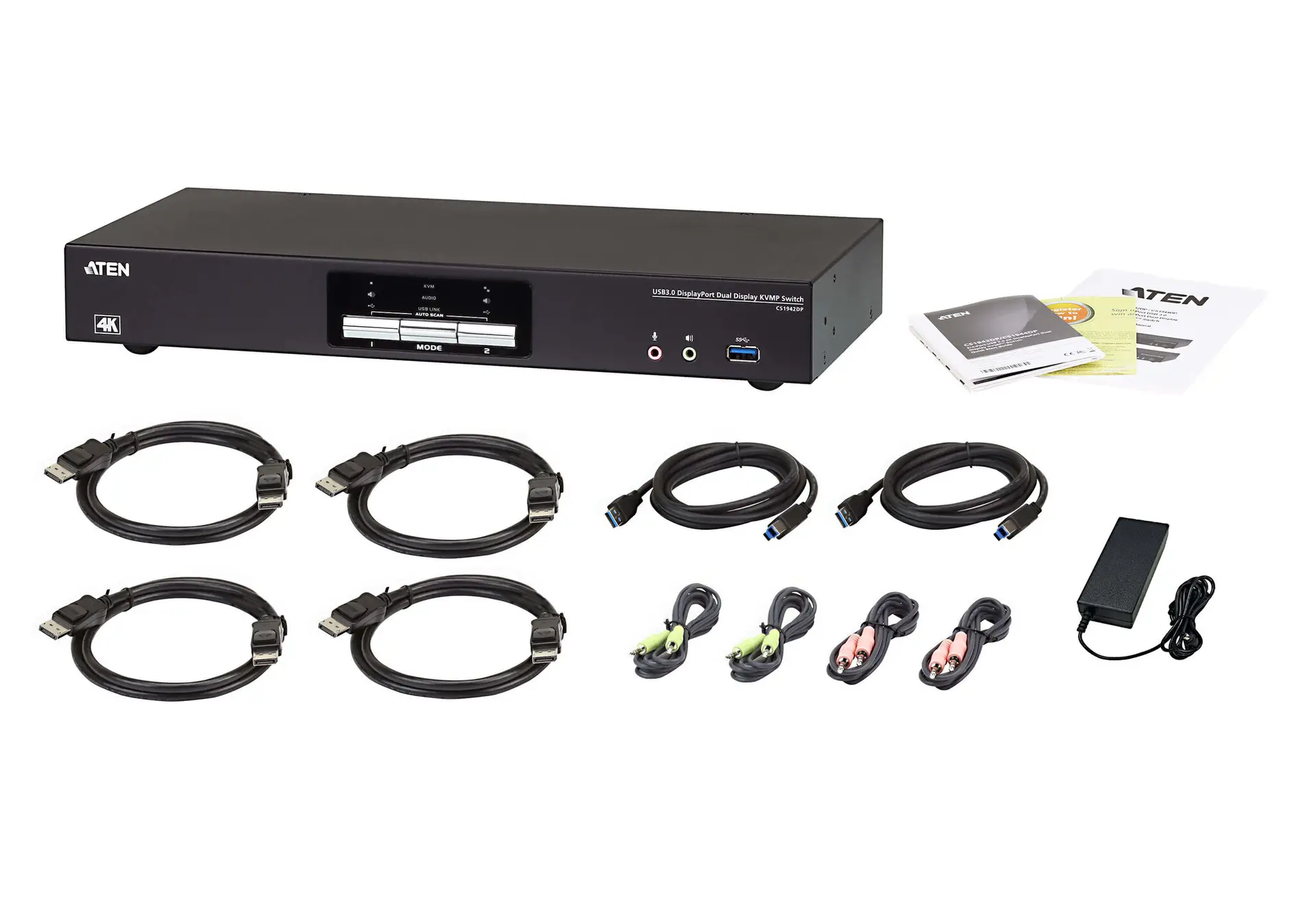

| Cables included | Audio (3.5mm), DisplayPort to Mini DisplayPort, USB |
| AC adapter included | Yes |
| USB hub | Yes |
| Headphone outputs | 4 |
| Number of microphone inputs | 4 |
| DisplayPorts quantity | 6 |
| DisplayPort version | 1.2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Auto scan delay (min) | 1 s |
| Auto scan delay (max) | 99 s |
| Daisy chain | Yes |
| Input voltage | 12 V |
