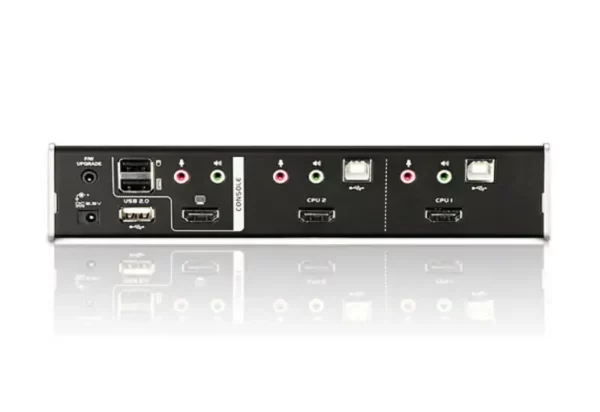

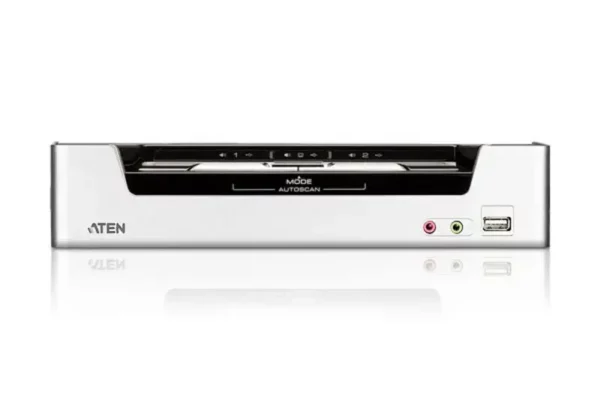

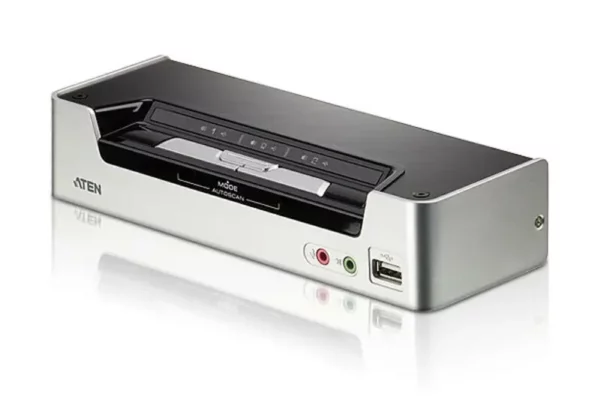

ATEN 2-Port USB HDMI KVM Switch with Audio & USB 2.0 Hub (KVM cables included)
2-Port USB HDMI KVM Switch with Audio & USB 2.0 Hub (KVM cables included)
- Delivered by tomorrow (order Mon-Fri Delivery times 07:00 - 17:00) *T&C's Apply
- Including shipping costs on orders over R1500
- Major Cities: 2 to 5 working days
Outlying areas: 5-9 working days
- 7 days to change your mind and free returns *T&C's Apply
- Excellent customer service
Description
With its unique design and innovative features, the CubiQ™ CS1792 USB 2.0 HDMI KVMP™ Switch provides both style and functionality for today’s multimedia SOHO environment. Combining a 2-port switch with a 2-port USB 2.0 hub, the CS1792 provides seamless HDMI signal switching between 2 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from a single console.
1x CS1792 USB 2.0 HDMI KVMP™ Switch
2x 2L-7D02UH HDMI KVM Cable Sets (1.8m)
1x LIN5-04A2-J13G Firmware Upgrade Cable
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions
Additional information
| Number of computers controlled | 2 |
|---|---|
| Brand | Aten |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 2 |
| DC-in jack | Yes |
| Maximum resolution | 1920 x 1200 pixels |
| Product colour | Black, Grey |
| Housing material | Metal, Plastic |
| Built-in display | No |
| Operating temperature (T-T) | 0 – 50 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating relative humidity (H-H) | 0 – 80% |
| Width | 206.3 mm |
| Depth | 72.4 mm |
| Height | 44 mm |
| Weight | 1.04 kg |
| Harmonized System (HS) code | 85176200 |
| Console ports | 3.5mm headphone, 3.5mm mic, HDMI, USB A |
| Console USB ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B |
| HD type | WUXGA |
| Video bandwidth | 60 Hz |
| LED indicators | Yes |
| Hot keys | Yes |
| Power source | DC |
| Power consumption (typical) | 5.35 W |
| Mac operating systems supported | Yes |
| Scan interval | 1,5,99 s |
| Manual | Yes |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Quick installation guide | Yes |
| USB hub | Yes |
| Audio connections | Yes |
| Headphone outputs | 4 |
| Number of microphone inputs | 4 |
| Package width | 95 mm |
| Package depth | 265 mm |
| Package height | 220 mm |
| Package weight | 1.37 kg |
| Master (outer) case net weight | 5.2 kg |
| Master (outer) case width | 232 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 283 mm |
| Master (outer) case gross weight | 7.3 kg |
| Products per master (outer) case | 5 pc(s) |
| Storage relative humidity (H-H) | 0 – 80% |
| USB 2.0 Type-A hub ports quantity | 2 |
| Input voltage | 5.3 V |
