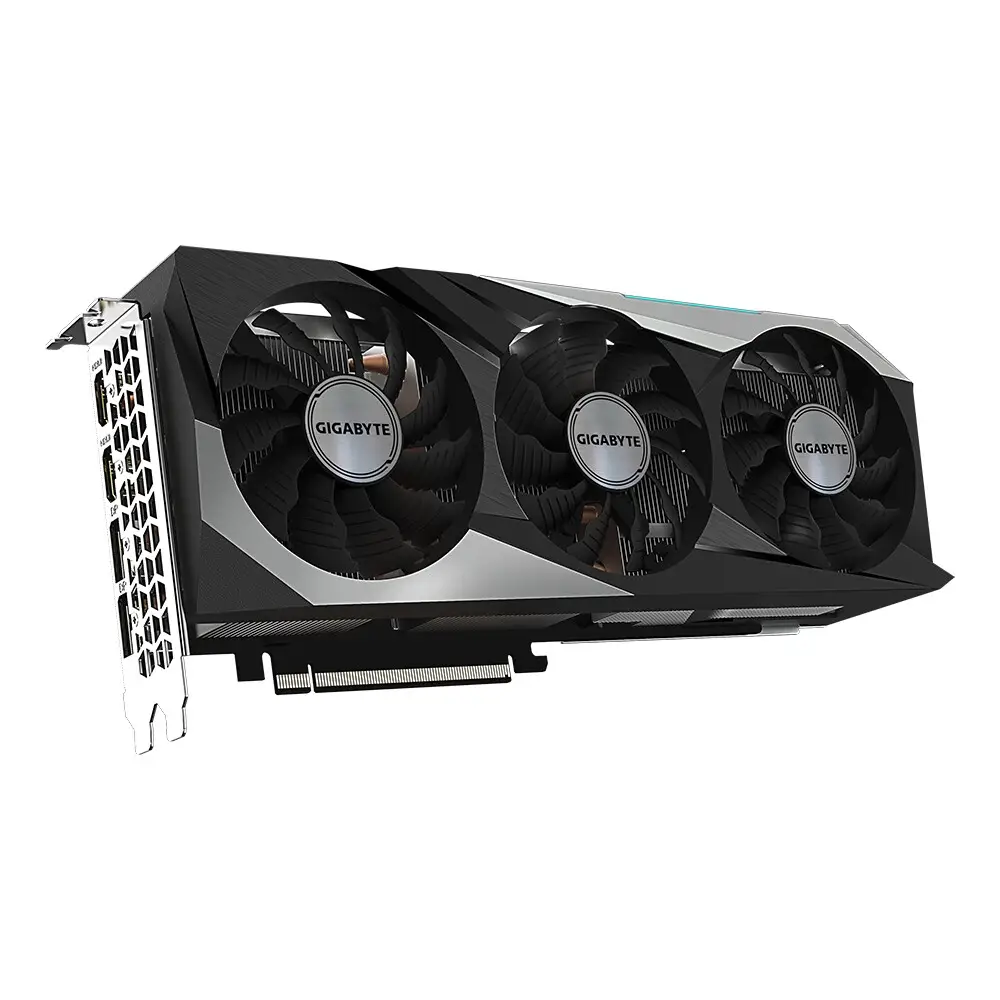

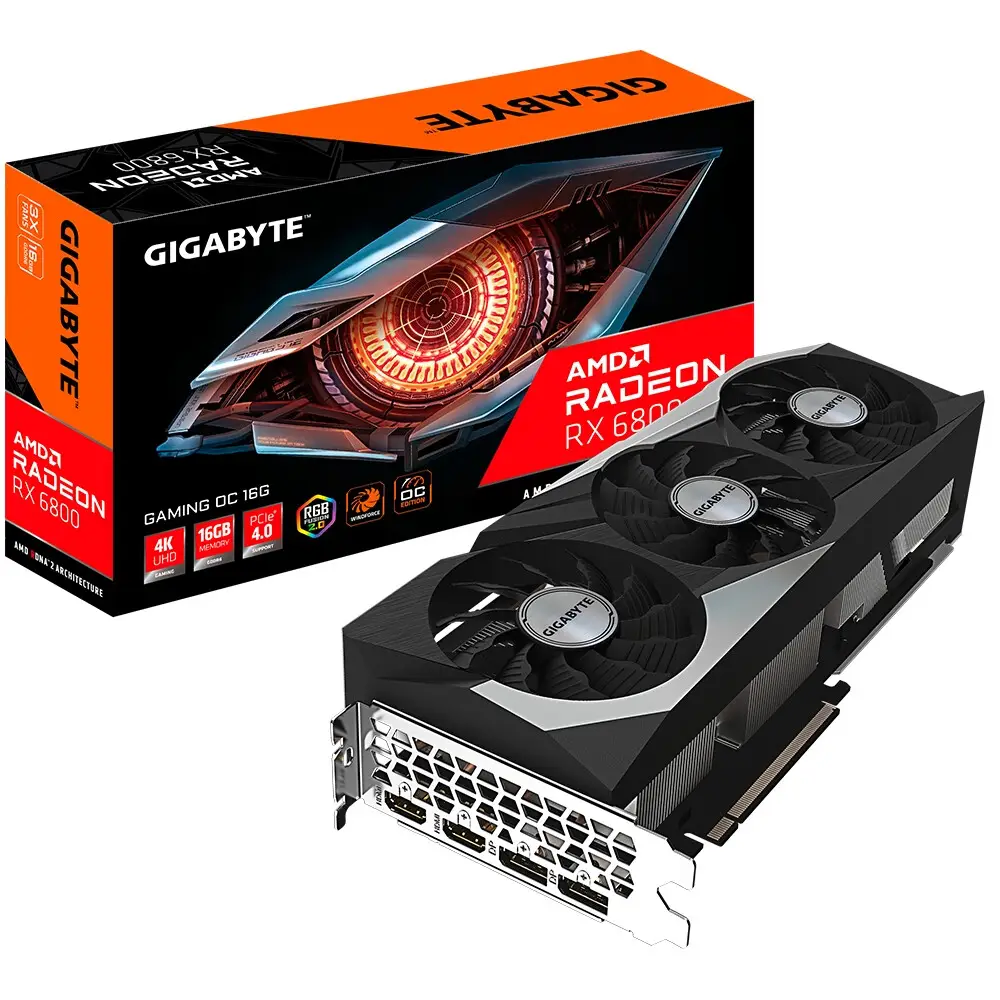

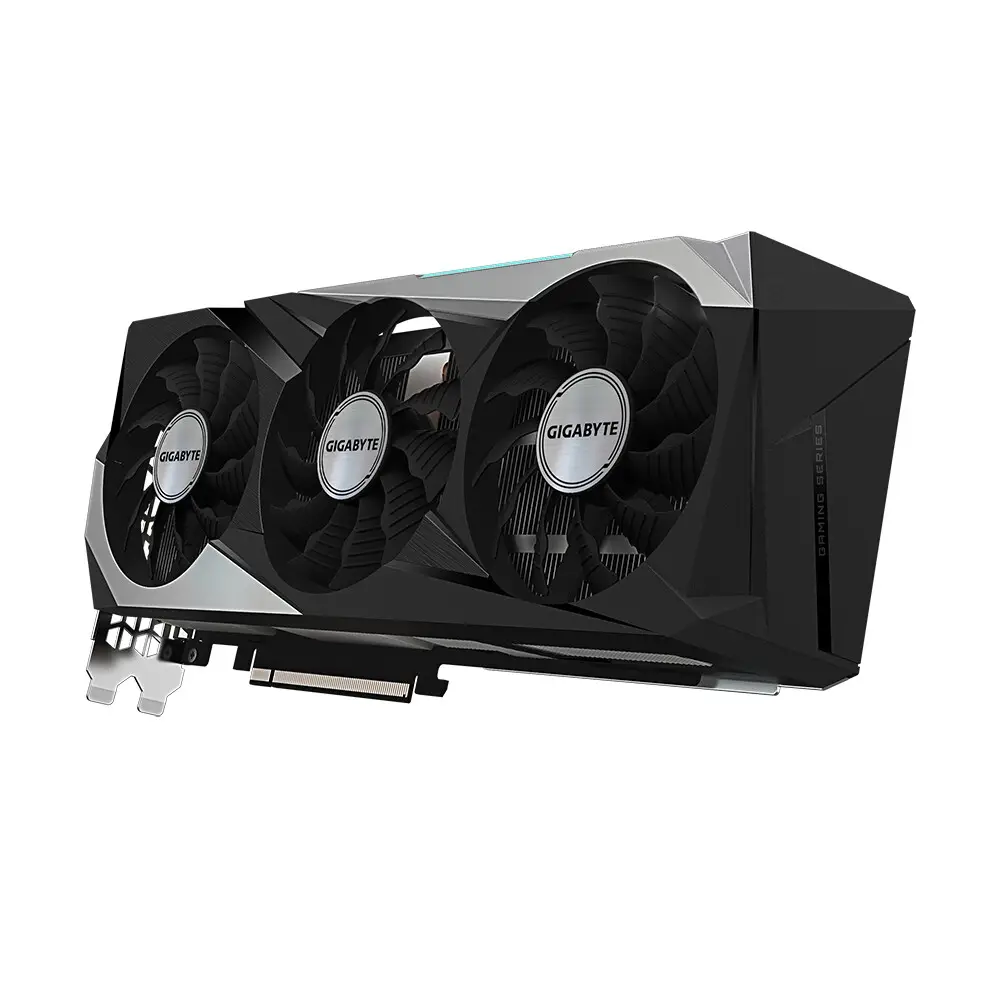

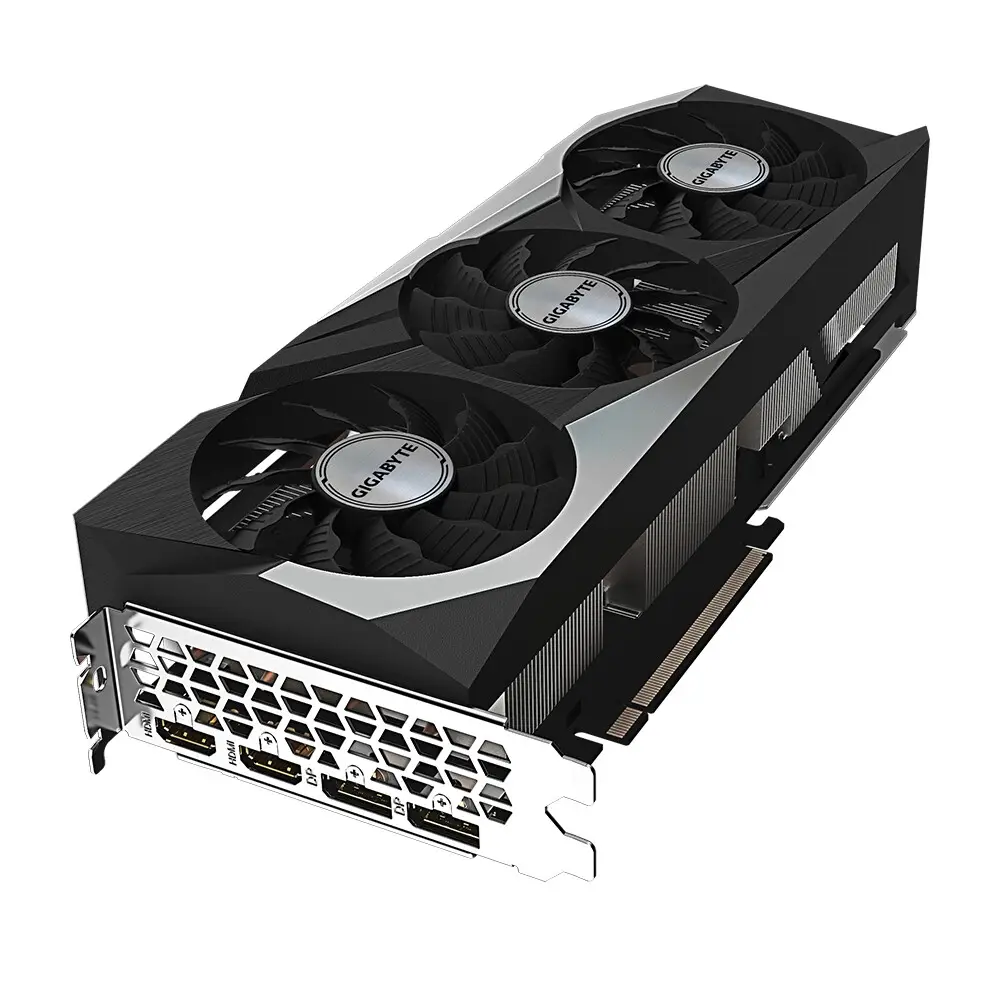

Gigabyte GAMING Radeon RX 6800 OC 16G AMD 16 GB GDDR6

R20501
Out of stock
Out of stock

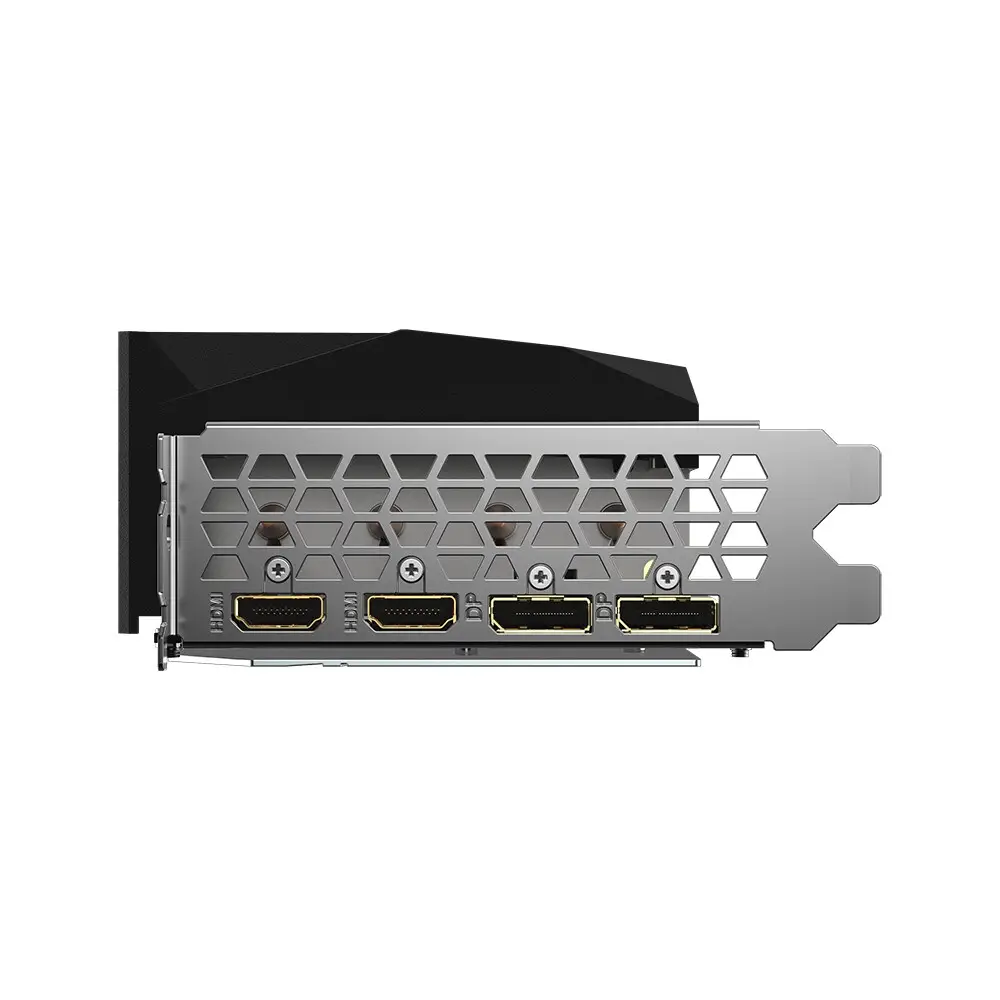

16GB, GDDR6, 256-bit, 2155MHz boost clock, 2xHDMI, 2xDisplayPort, RGB

  • Delivered by tomorrow or collect today (order Mon-Fri Delivery times 07:00 - 17:00) *T&C's Apply
  • Including shipping costs on orders over R1500
  • Pick up at TrueTech.co.za collection point is possible
  • 7 days to change your mind and free returns
  • Excellent customer service
SKU: GIGABYTE_GV-R68GAMING OC-16GD
Category:

Description

POWERHOUSE PERFORMANCE
AMD Radeon™ RX 6800 Series graphics cards deliver ultra-high frame rates and serious 4K gameplay. Get the ultimate gaming experience with powerful new compute units, groundbreaking AMD Infinity Cache, and up to 16GB of dedicated GDDR6 memory. And, when paired with an AMD Ryzen™ 5000 Series desktop processor, AMD Smart Access Memory technology offers new levels of gaming performance.

VIVID VISUALS
AMD Radeon™ RX 6800 Series graphics cards pull you into the action with immersive gaming technologies and support for DirectX® 12 Ultimate. Experience gaming with realistic lighting, shadows, and reflections along with rich detail thanks to DirectX® Raytracing (DXR), variable rate shading (VRS), and AMD FidelityFX features, optimized for AMD RDNA™ 2 architecture.

ELEVATED EXPERIENCES
Ultimate responsiveness and smooth gaming are up-leveled with low-latency gaming technology from AMD Radeon Anti-Lag and AMD Radeon Boost.Propel your gaming experience with the latest HDMI™ 2.1 VRR technology, USB-C™ enabled VR headsets, or over 1250 AMD FreeSync™ technology-enabled gaming displays.

ONE GAMING DNA FOR PCS AND CONSOLES
AMD RDNA™ 2 architecture is the foundation of next-generation gaming PCs and consoles. It is the bedrock of the upcoming revolution in PC gaming graphics and cloud gaming. AMD RDNA™ 2 elevates and unifies visual effects and gameplay across multi-gaming platforms, like no other graphics architecture before.

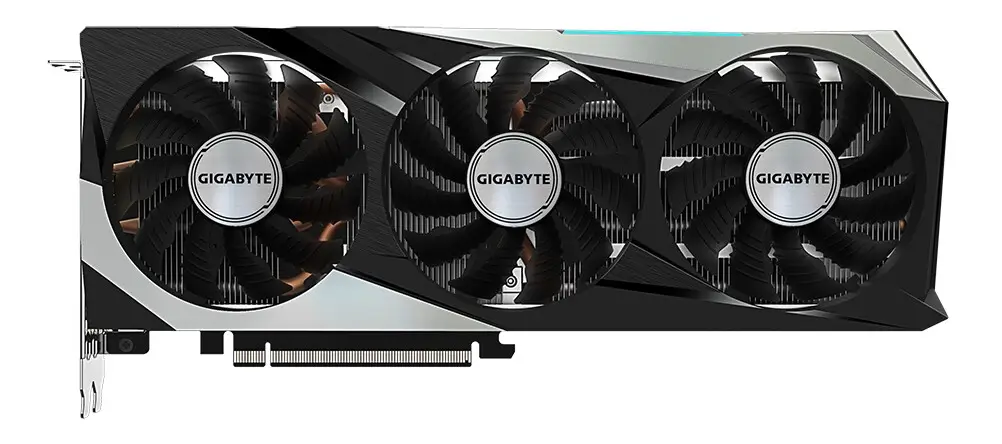

WINDFORCE 3X COOLING SYSTEM
The WINDFORCE 3X cooling system features 3X80mm unique blade fans, alternate spinning, 5 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING
Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.

SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.

SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.

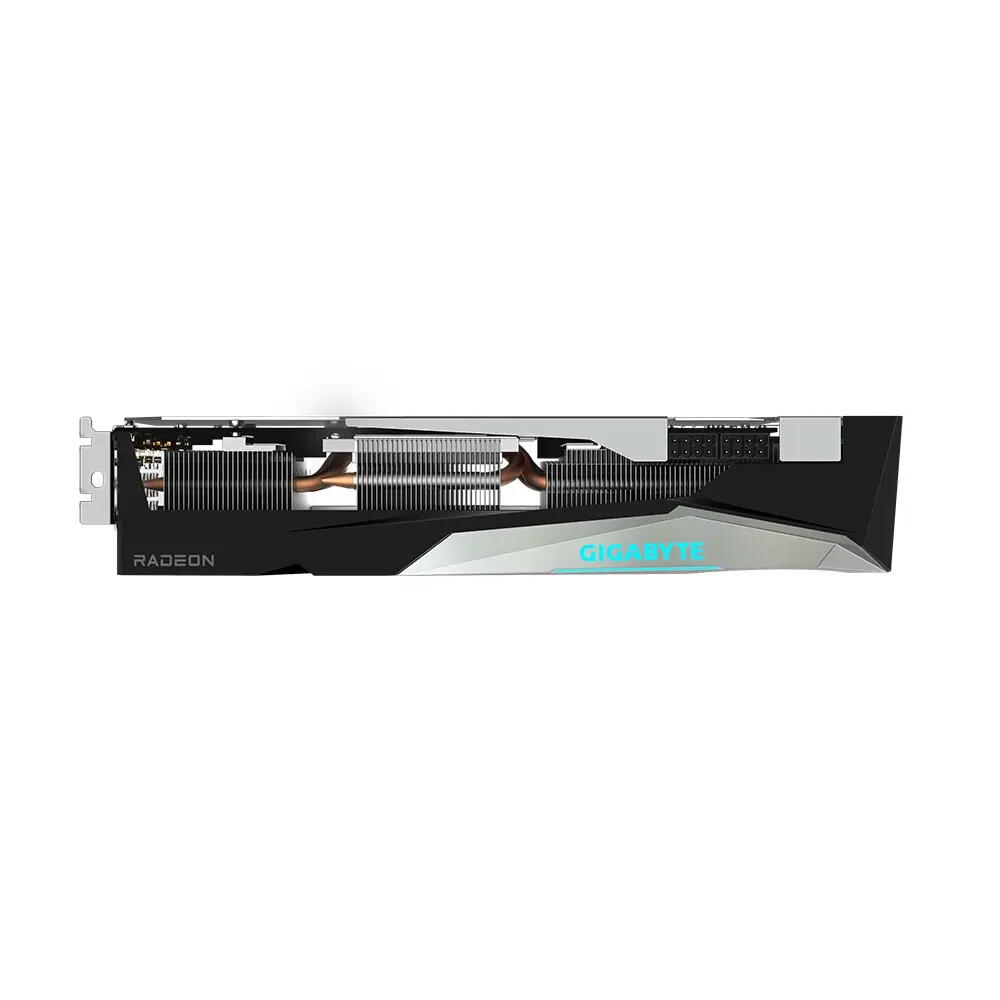

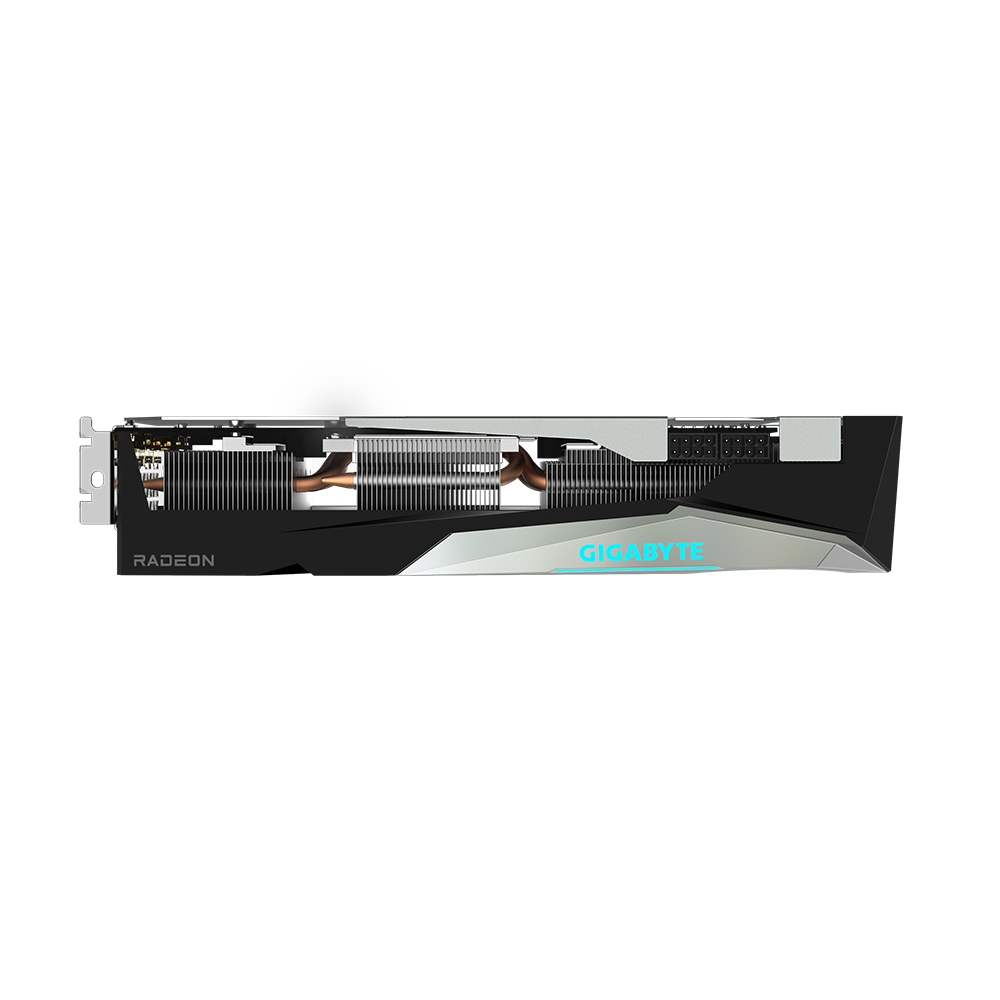

HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.

RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.

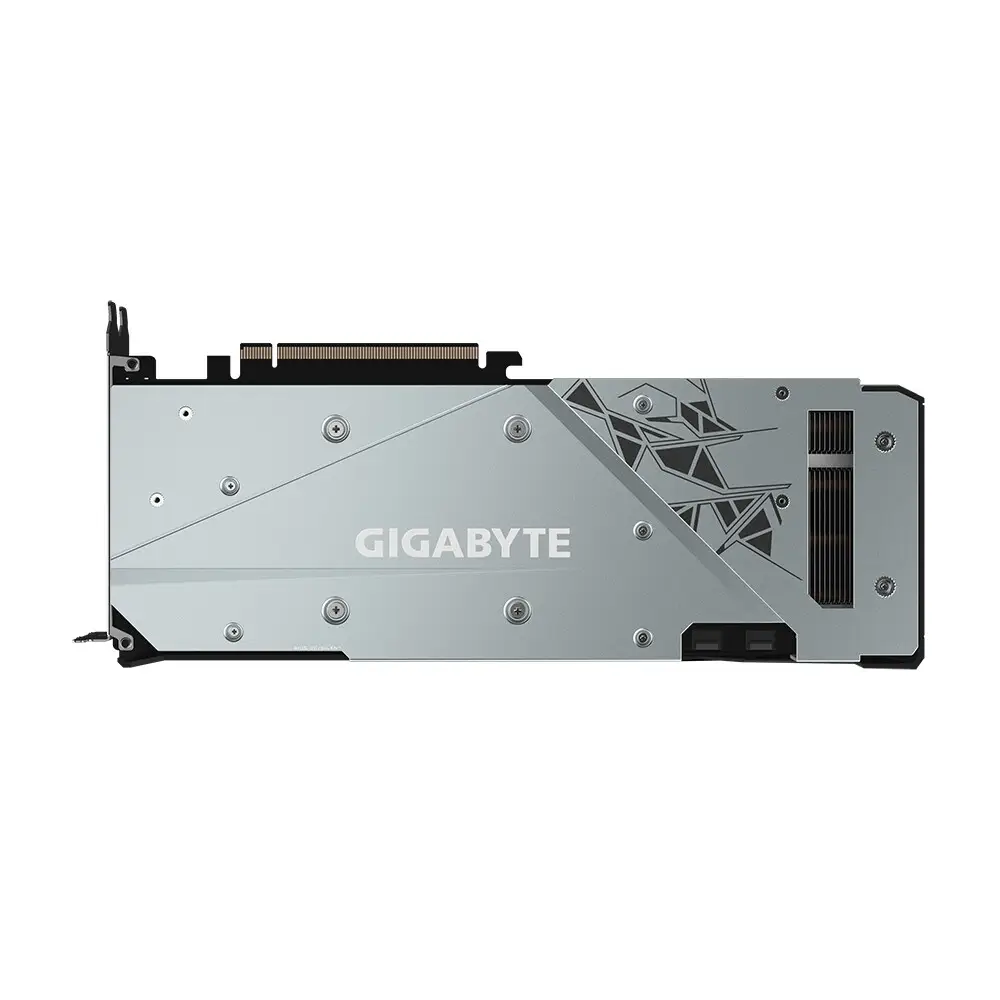

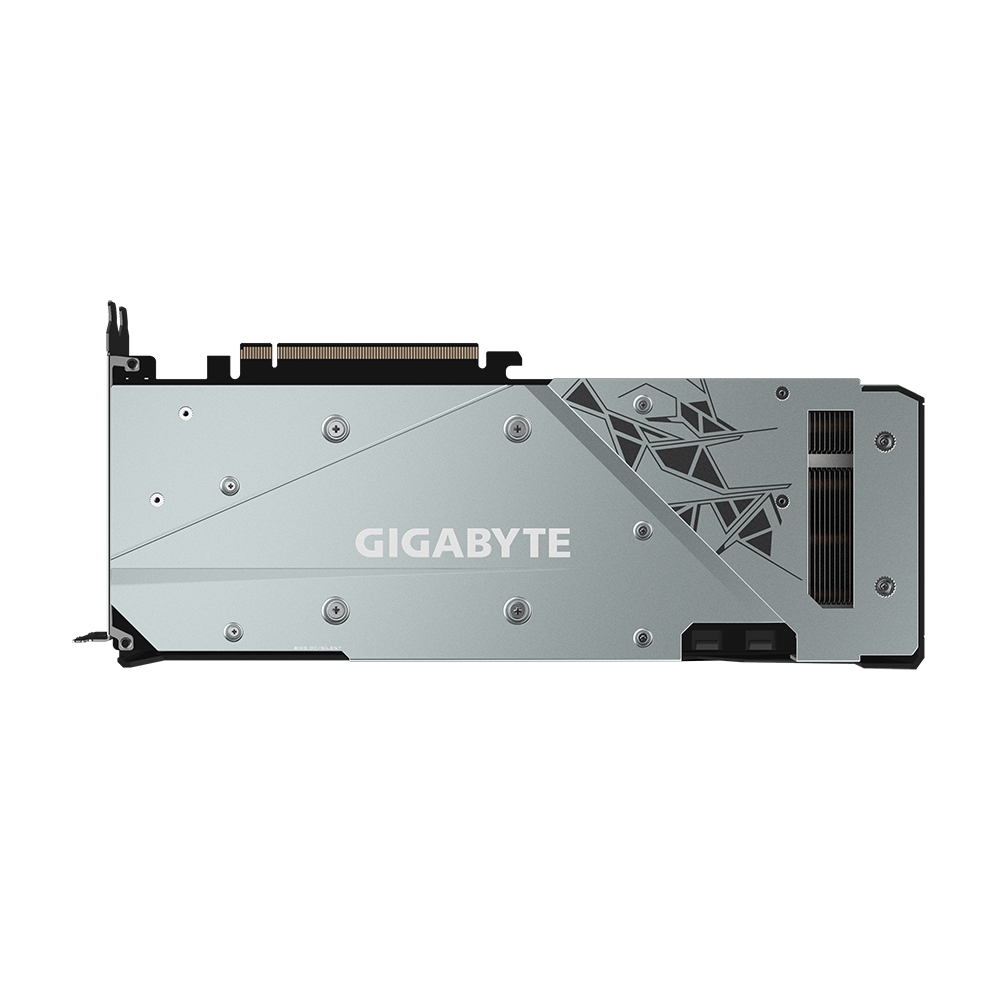

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

DUAL BIOS
Silent mode will provide a quieter experience. The mode switch requires a reboot to take effect. The default is OC mode.

EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

AORUS ENGINE
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.

Additional information

Graphics processor family

AMD

Brand

Gigabyte

Graphics processor

Radeon RX 6800

Maximum resolution

7680 x 4320 pixels

CUDA

No

Processor boost clock speed

2155 MHz

Discrete graphics card memory

16 GB

Graphics card memory type

GDDR6

Memory bus

256 bit

Memory clock speed

16000 MHz

Interface type

PCI Express x16 4.0

HDMI ports quantity

2

HDMI version

2.1

TV tuner integrated

No

DirectX version

12.0

OpenGL version

4.6

PhysX

No

Cooling type

Active

Number of fans

3 fan(s)

Product colour

Black, Grey

Minimum system power supply

650 W

Depth

286 mm

Height

58 mm

Width

112 mm

Maximum displays per videocard

4

Harmonized System (HS) code

84733020

DisplayPorts quantity

2

DisplayPort version

1.4a

Illumination

Yes

Supplementary power connectors

2x 8-pin

Package type

Box

Product family

Gaming

Memory bandwidth (max)

512 GB/s

Stream processors

3840

AMD FreeSync

Yes

Cooling technology

GIGABYTE WINDFORCE 3X

Fan diameter

8 cm

Illumination colour

Multi

User guide

Yes

Virtual Reality (VR) ready

Yes
