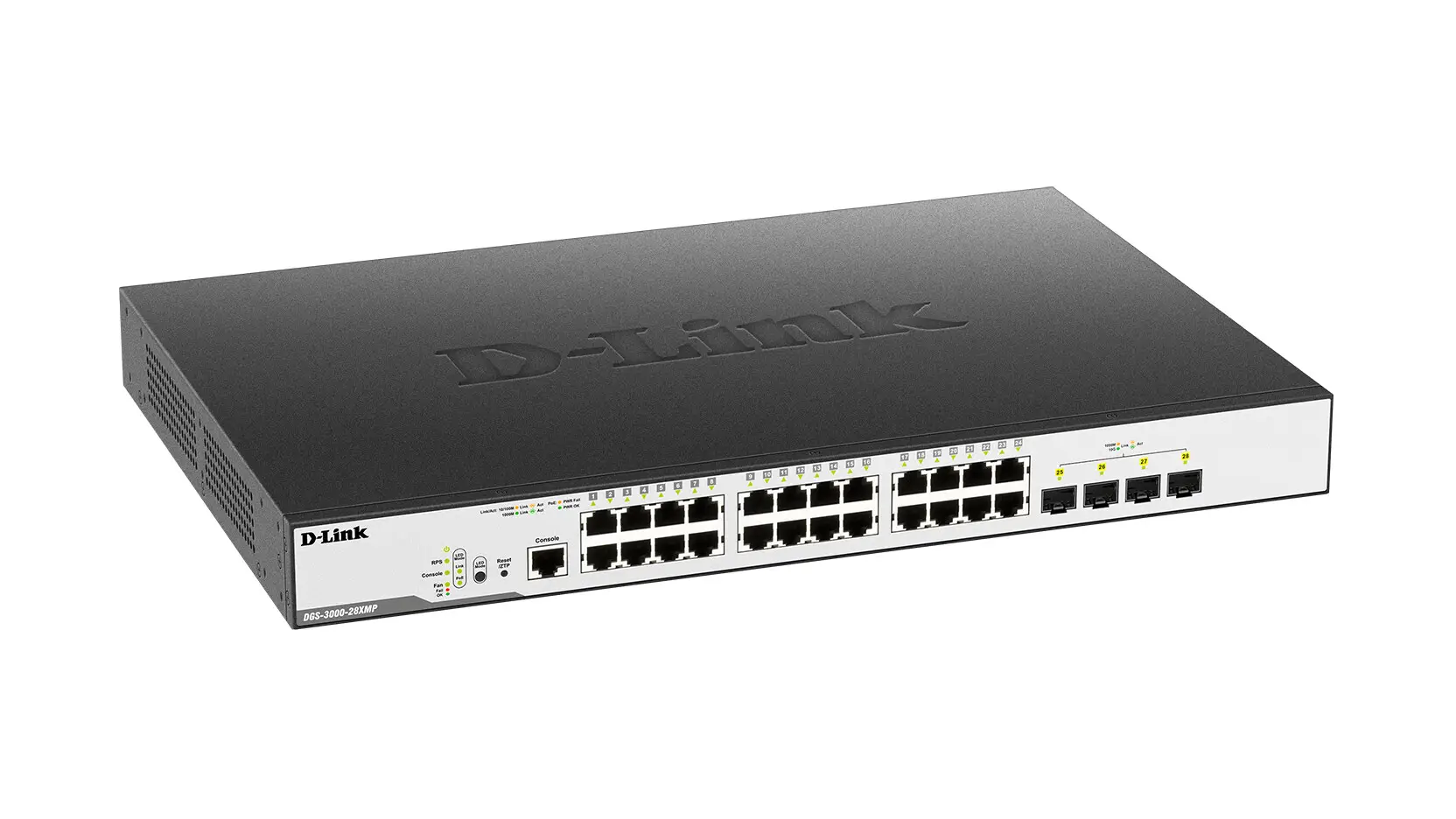

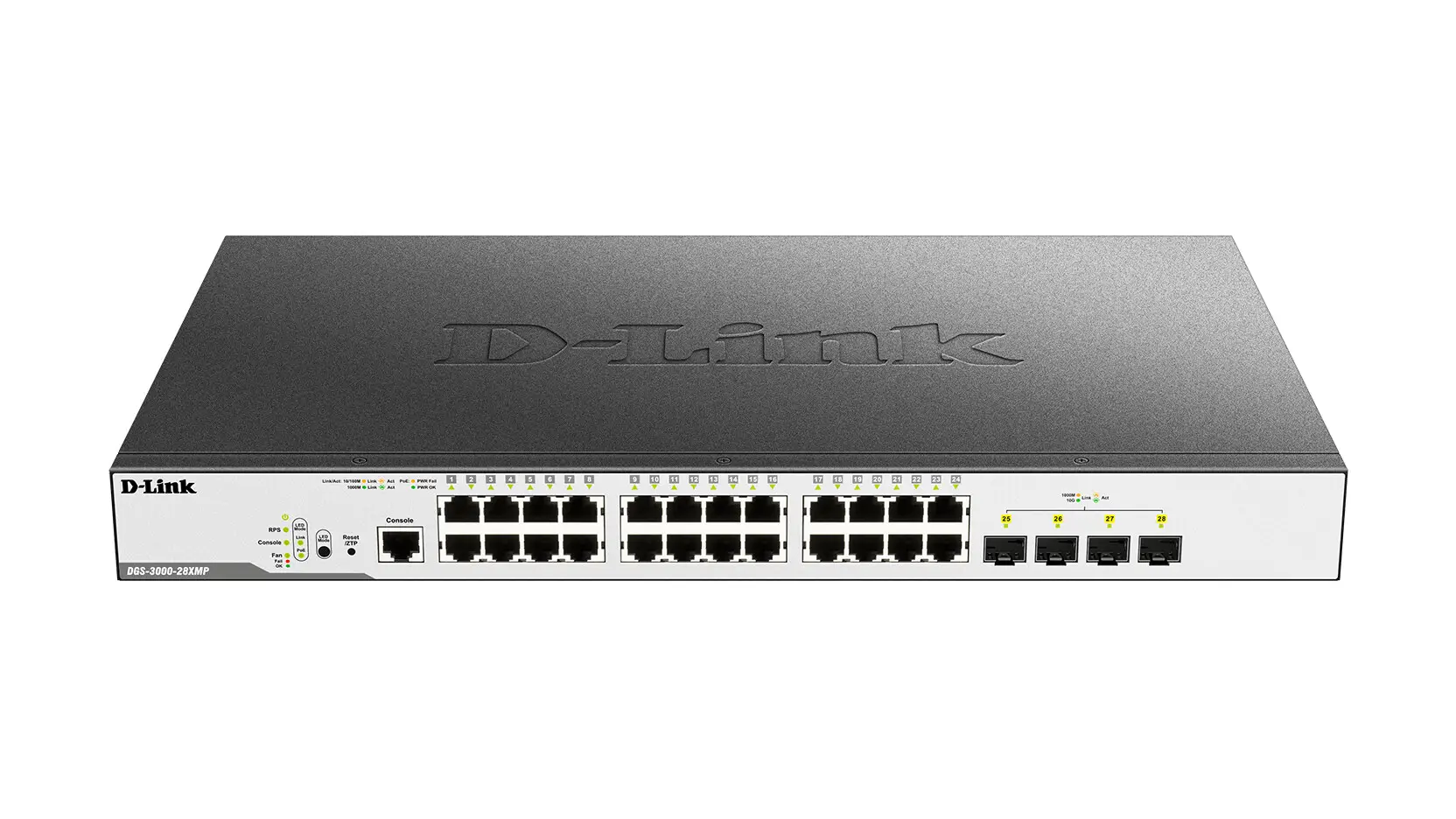

D-Link DGS-3000-28XMP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

R17597
Out of stock
Out of stock

128 Gbps, 24x 10/100/1000 Mbps RJ-45, 4x 10G SFP+, PoE, VLAN, QoS, 1U, 19″, 440 x 210 x 44 mm

  • Delivered by tomorrow or collect today (order Mon-Fri Delivery times 07:00 - 17:00) *T&C's Apply
  • Including shipping costs on orders over R1500
  • Pick up at TrueTech.co.za collection point is possible
  • 7 days to change your mind and free returns
  • Excellent customer service
SKU: D-LINK_DGS-3000-28XMP

Description

Comprehensive Controllable Network.
The DGS-3000 Series Gigabit L2 Managed Switches provide wired Gigabit speeds, featuring a variety of ports for increased network bandwidth.
Surge protection, advanced Layer 2 functions, and a suite of security and management tools make the DGS-3000 Series Gigabit L2 Managed Switches ideal for Metro Ethernet and campus applications.

Multi-Gigabit Performance
The DGS-3000 series come with a variety of port types, including 1 G RJ-45 ports, 1 G SFP ports, and 10G SFP+ ports, with all models offering a minimum of at least 2 1 G SFP ports.

Efficient and Resilient Networking
The DGS-3000 Series supports:
– ITU-T G.8032 Ethernet Ring Protection Switching (ERPS), which allows 50-millisecond failover, minimising service disruption.
– Up to 6 kV surge protection on all Ethernet ports.
– IEEE 802.1AX and 802.3ad Link Aggregation allows grouping of multiple ports to provide redundancy and load balancing in mission-critical environments.

Manageability
All switches can be managed as a virtual stack, allowing physically separate switches to be managed using a single IP address. The DGS-3000 Series also supports management tools such as a Web UI, SSH, Telnet, and console, and standards-based protocols such as SNMP, RMON, and SSL.
D-Link Single IP Management (SIM) simplifies and speeds up management tasks, allowing multiple switches to be configured, monitored, and maintained from any workstation, wherever the location.

Security & Authentication
The DGS-3000 Series offers user and device authentication, including host-based authentication and authorization, which provide the option to finely control network access for each device on the network.

Secure Network Environment
Advanced features such as RADIUS accounting allow the switches to be integrated with back-end systems for billing or advanced access control.
The DGS-3000 Series also supports address and interface binding features such as IP-MAC-Port Binding and ARP Spoofing Prevention to protect against Man-in-the-Middle or ARP Spoofing attacks.

Quality of Service
The DGS-3000 Series implements a rich set of multilayer QoS/CoS features to ensure that critical network services such as VoIP, video conferencing, IPTV, and IP surveillance are given high priority.
Administrators can prioritise network traffic with Traffic Shaping features guaranteeing bandwidth for critical services when the network is busy.

Additional information

Switch type

Managed

Brand

D-Link

Basic switching RJ-45 Ethernet ports quantity

24

Full duplex

Yes

MAC address table

16000 entries

LED indicators

Activity, Fan fail, Link, Power, Speed, Uplink

Shipping (inner) case height

48.5 cm

Shipping (inner) case width

38.5 cm

Shipping (inner) case length

53 cm

Shipping (inner) case net weight

14.8 kg

Products per shipping (inner) case

3 pc(s)

Pallet gross weight (air)

513.1 kg

Master (outer) cases per pallet (air)

24 pc(s)

Products per pallet (air)

72 pc(s)

Pallet gross length

110 cm

Pallet gross width

120 cm

Pallet height (air)

2.08 m

Pallet gross weight (sea)

513.1 kg

Master (outer) cases per pallet (sea)

24 pc(s)

Products per pallet (sea)

72 pc(s)

Pallet height (sea)

2.08 m

Shipping (inner) case gross weight

20.6 kg

Power over Ethernet (PoE)

Yes

Operating temperature (T-T)

-5 – 50 °C

Operating relative humidity (H-H)

0 – 95%

Package width

450 mm

Package depth

510 mm

Package height

121 mm

Package weight

4.94 kg

Harmonized System (HS) code

85176990

Networking standards

IEEE 802.1AX, IEEE 802.1D, IEEE 802.1af, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3at

Storage temperature (T-T)

-20 – 70 °C

Weight

4.25 kg

Switch layer

L2

Quality of Service (QoS) support

Yes

Web-based management

Yes

10G support

Yes

Copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-T

Port mirroring

Yes

Flow control support

Yes

Broadcast storm control

Yes

Auto MDI/MDI-X

Yes

Spanning tree protocol

Yes

Number of VLANs

4094

Switching capacity

128 Gbit/s

Store-and-forward

Yes

Packet buffer memory

1.5 MB

DHCP features

DHCP server, DHCP client

Access Control List (ACL)

Yes

IGMP snooping

Yes

Multicast support

Yes

Rack mounting

Yes

Stackable

Yes

Form factor

1U

Product colour

Black

Safety

cUL, CB

Mean time between failures (MTBF)

268693 h

Storage relative humidity (H-H)

0 – 95%

Heat dissipation

1518.132 BTU/h

Width

440 mm

Depth

308 mm

Height

44 mm

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

AC input voltage

100 – 240 V

AC input frequency

50 – 60 Hz

Total Power over Ethernet (PoE) budget

370 W

Cable types supported

Cat5, Cat5e

Jumbo frames support

Yes

Certification

CE, FCC, C-Tick, VCCI, BSMI

Jumbo frames

9216

Power consumption (max)

445.2 W

ARP inspection

Yes

Fiber optic connector

SFP+

Head-of-line (HOL) blocking

Yes

VLAN support

Yes

Forwarding rate

95.24 Mpps

Access Control List (ACL) rules

1024

Security algorithms

802.1x RADIUS, SNMP, SNMPv3, SSH, SSH-2, SSL/TLS

IP-MAC-Port binding

Yes

SSH/SSL support

Yes

Number of fans

2 fan(s)

Noise level

54.1 dB

Console port

RJ-45

BPDU filtering/protection

Yes

Authentication

Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication

SFP+ module slots quantity

4

Virtual LAN features

Private VLAN, Voice VLAN, Tagged VLAN, MAC address-based VLAN, Port-based VLAN

Multicast Listener Discovery (MLD) snooping

MLD v1, MLD v2

Virtual stacking (units)

32

Built-in processor

Yes

Redundant power supply (RPS) support

Yes

Surge protection voltage

6 kV
