ATEN 2-Port USB DisPlayPort Cable KVM Switch

R1869
Out of stock
Out of stock

2-Port USB DisPlayPort Cable KVM Switch

  • Delivered by tomorrow (order Mon-Fri Delivery times 07:00 - 17:00) *T&C's Apply
  • Including shipping costs on orders over R1500
  • Major Cities: 2 to 5 working days
    Outlying areas: 5-9 working days
  • 7 days to change your mind and free returns *T&C's Apply
  • Excellent customer service
SKU: ATEN_CS22DP-AT
Category:

Description

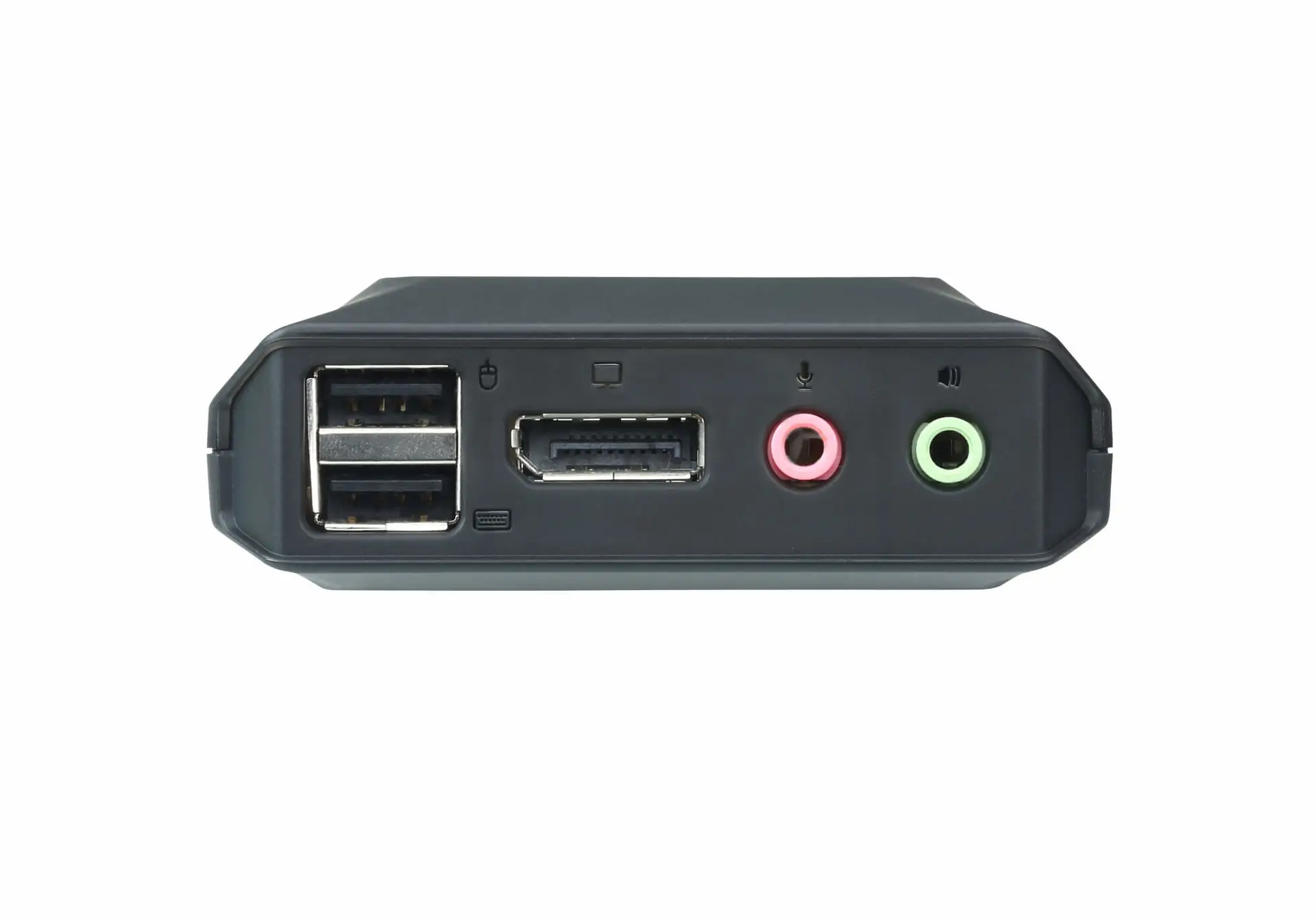

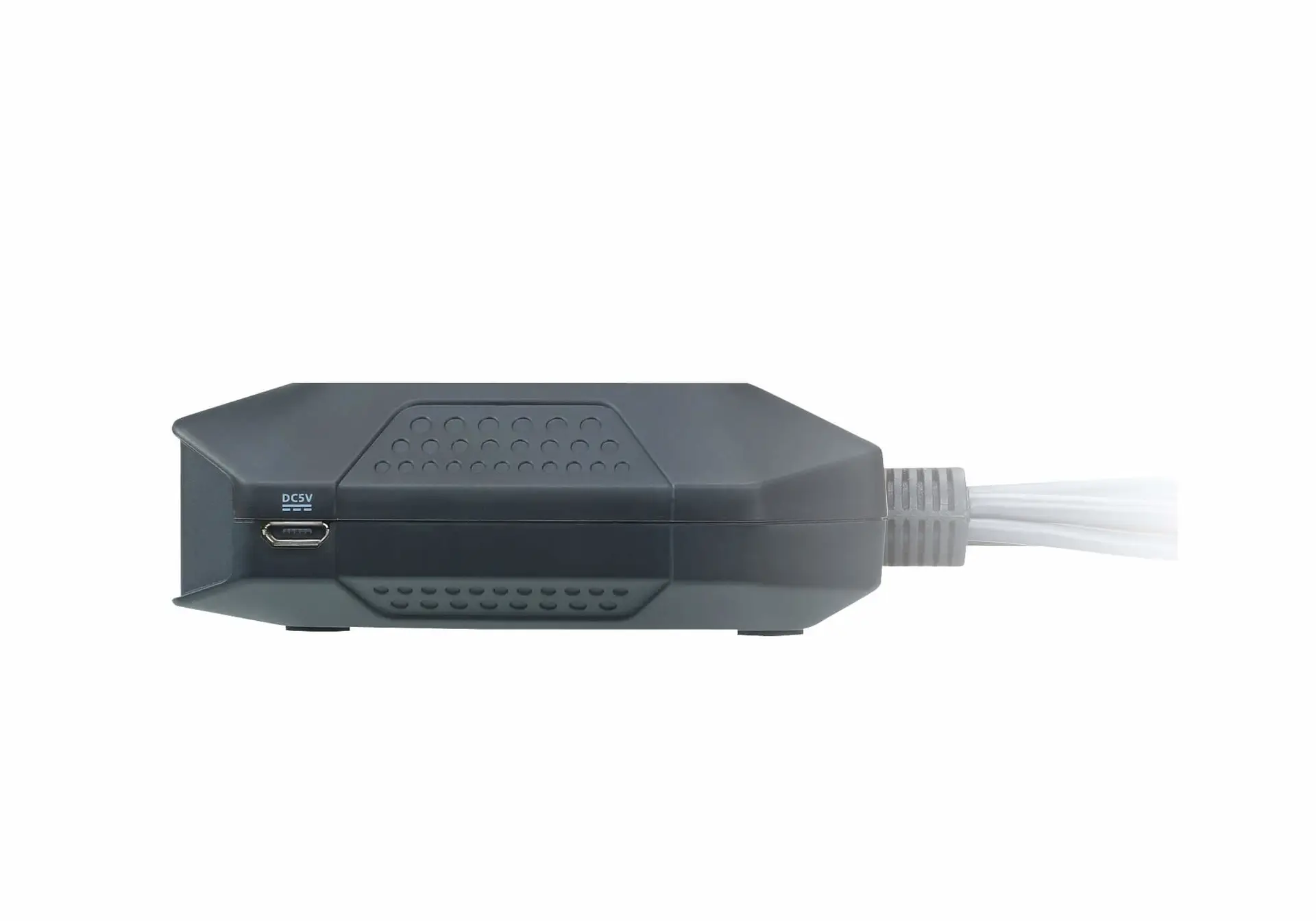

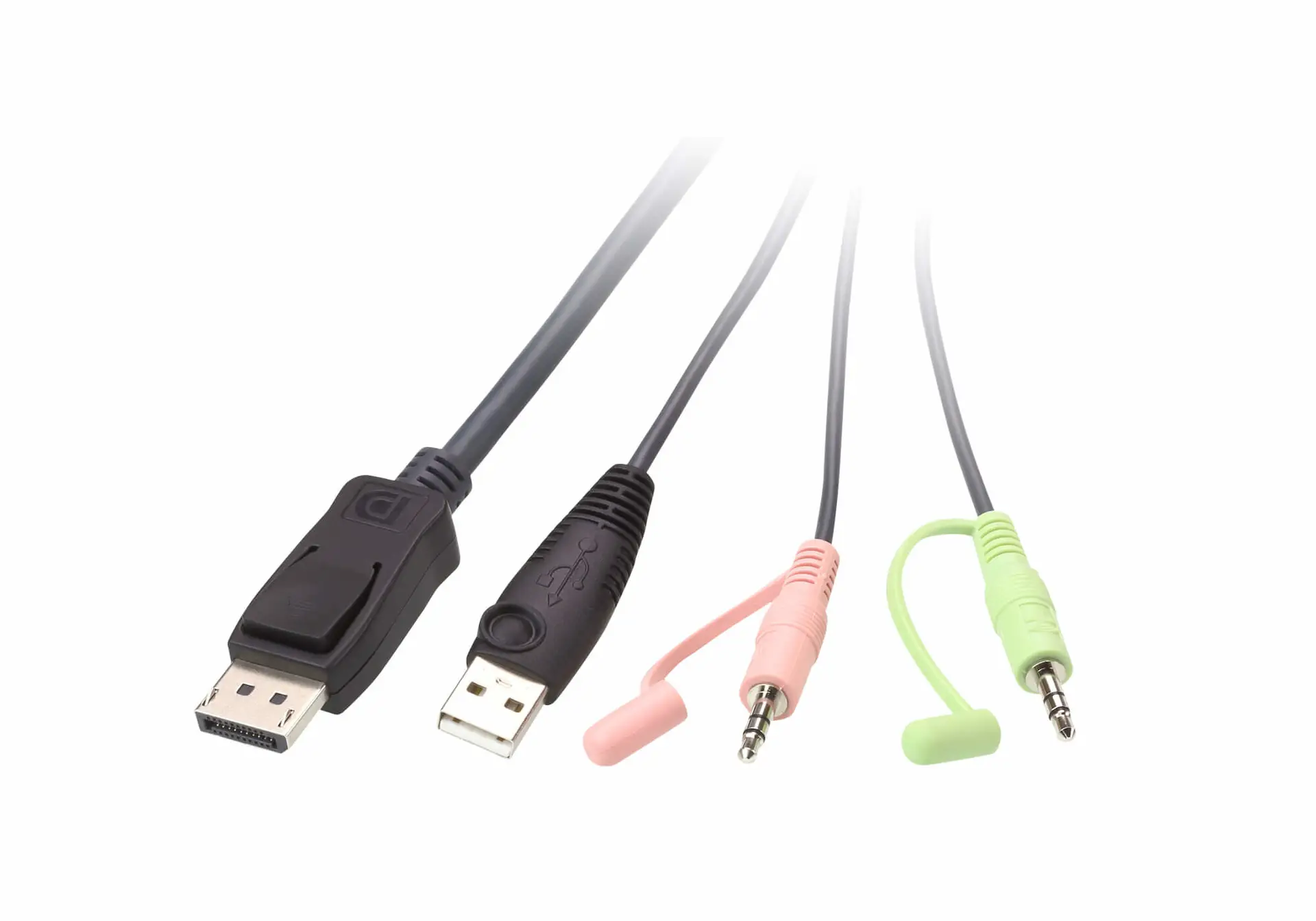

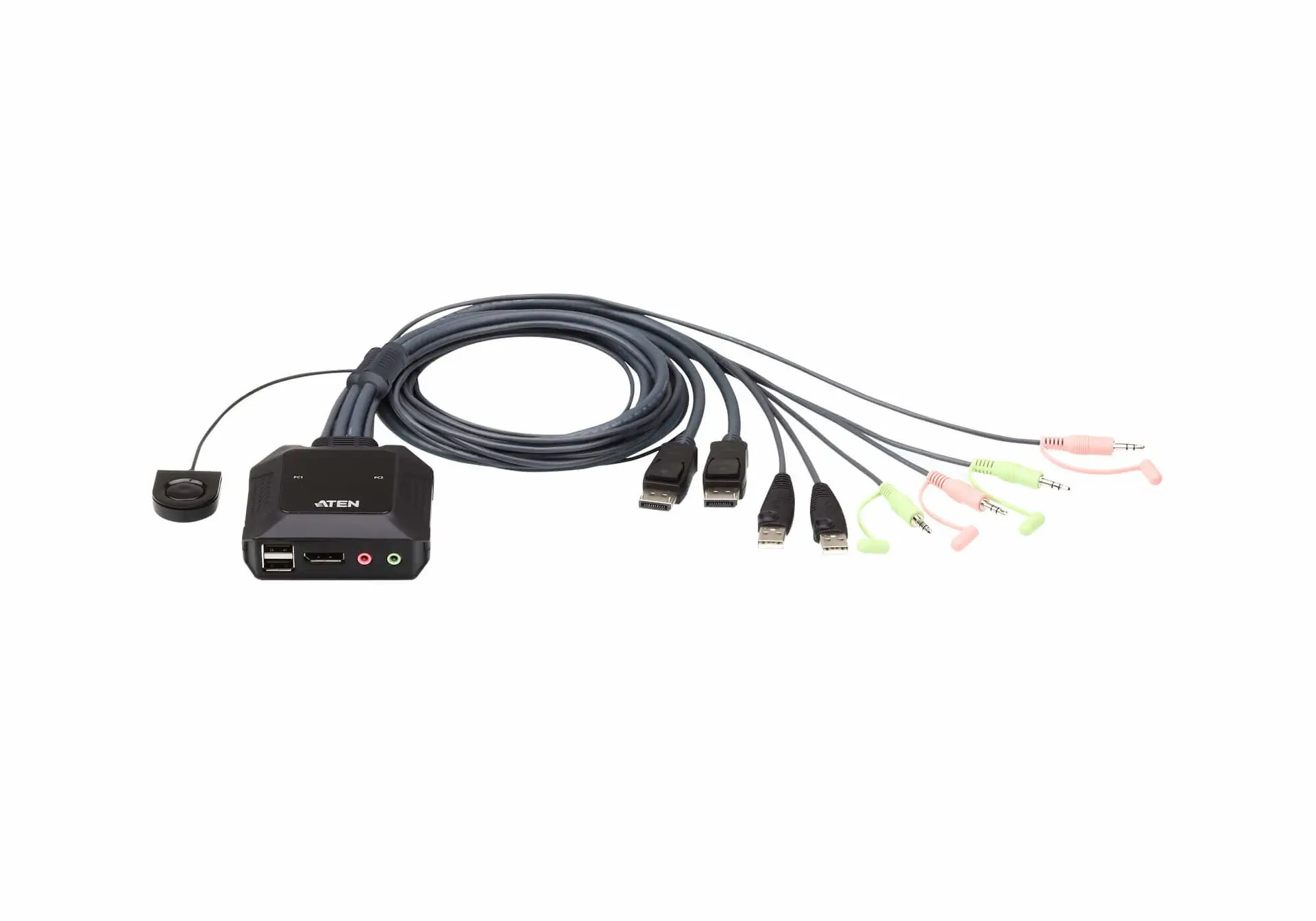

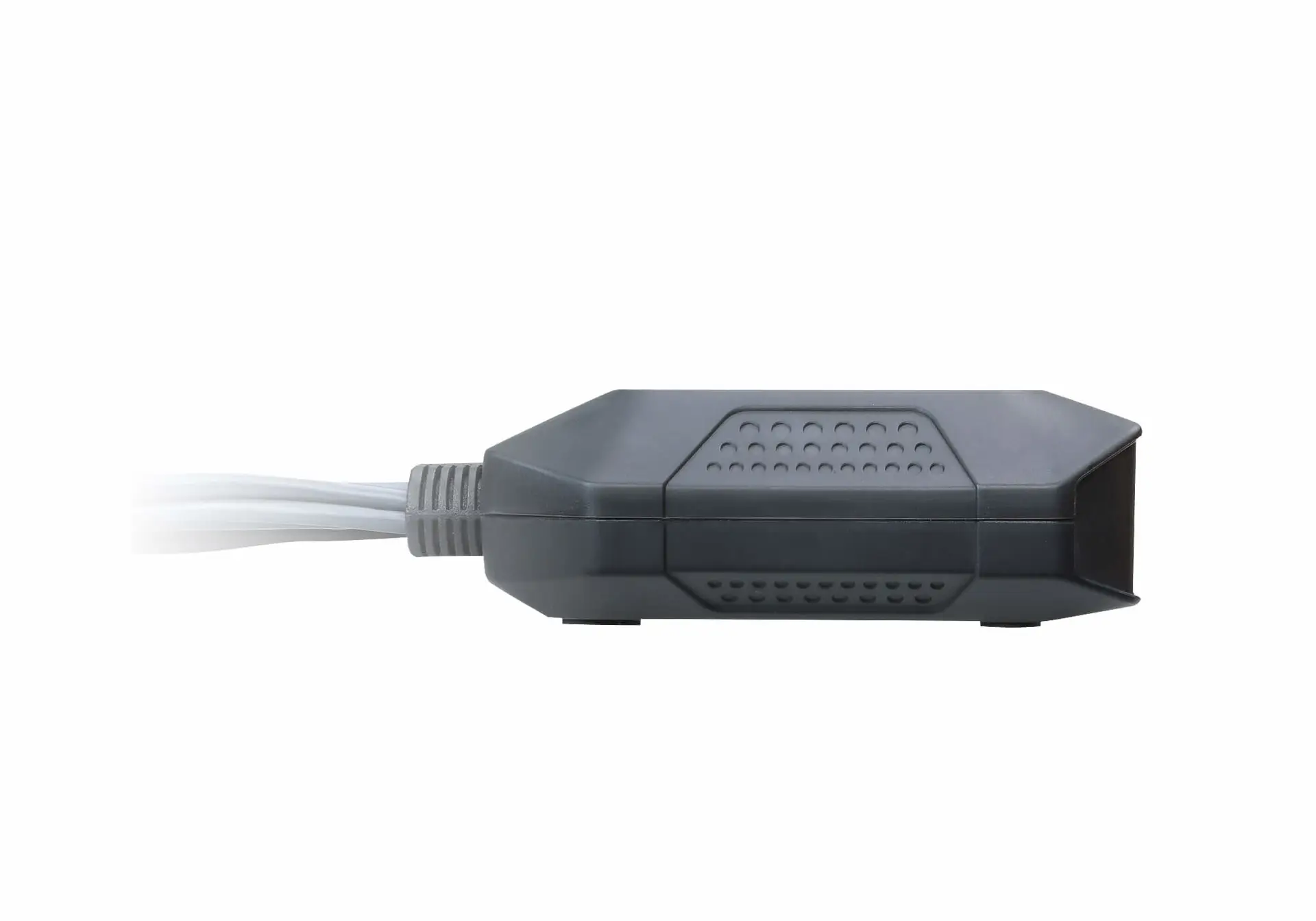

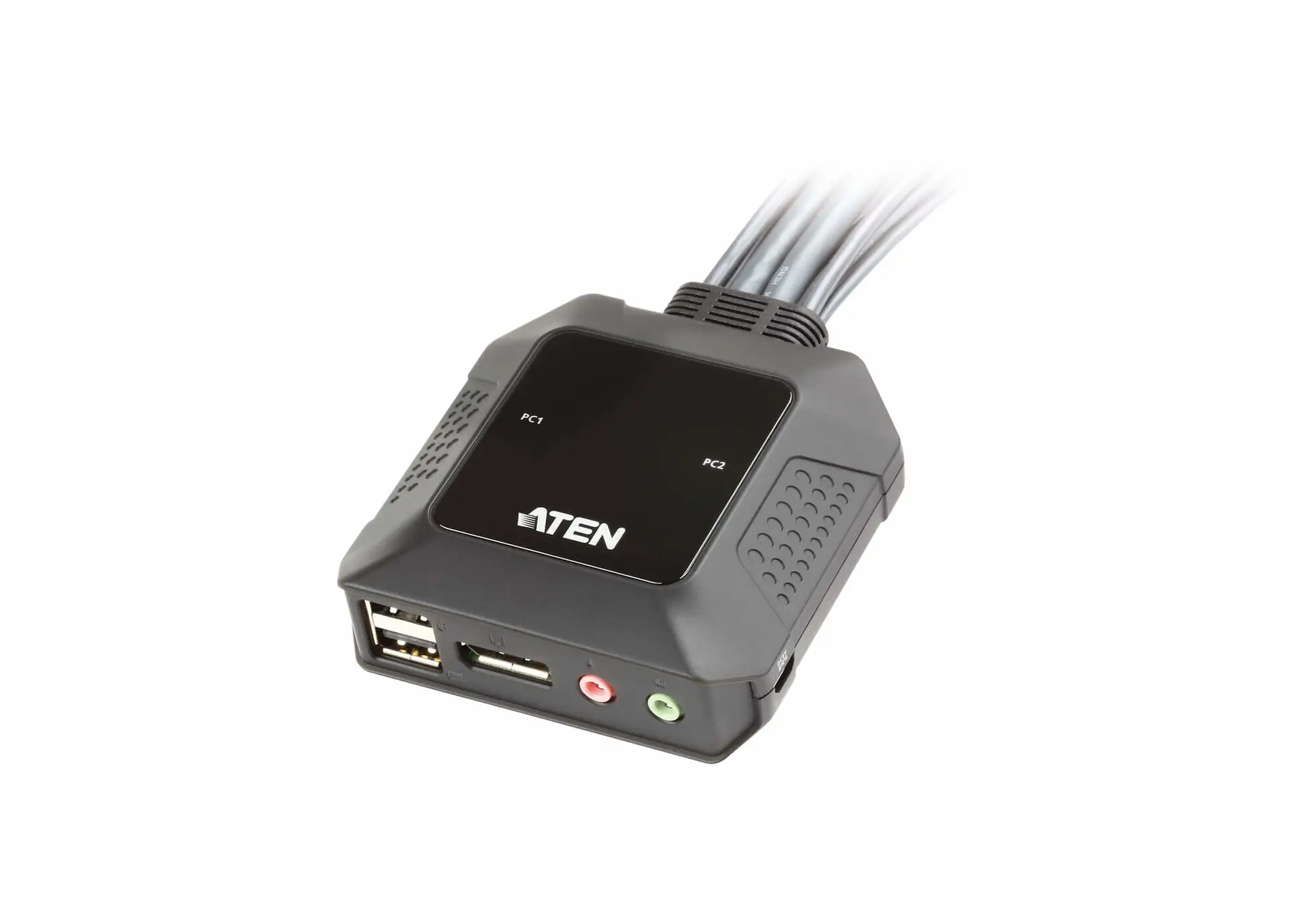

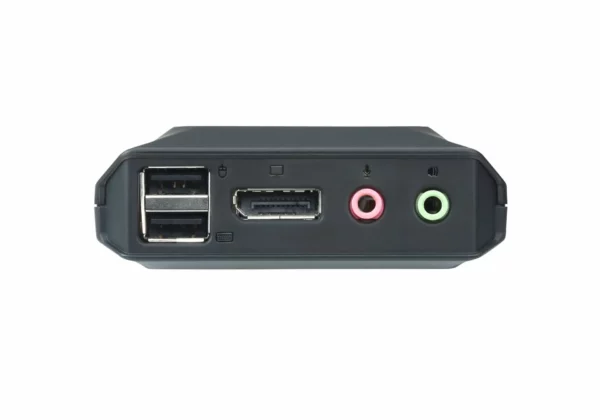

The CS22DP 2-Port USB DisplayPort Cable KVM Switch is a control unit that allows access to two computers from a single USB and DisplayPort console (keyboard, video and mouse) with audio. With the CS22DP, you can quickly and effortlessly switch between two DisplayPort computers using a convenient remote port selector pushbutton.
1x CS22DP 2-Port USB DisplayPort Cable KVM Switch
1x User Instructions

Additional information

Number of computers controlled

2

Brand

Aten

Keyboard port type

USB

Mouse port type

USB

Video port type

DisplayPort

Maximum resolution

4096 x 2160 pixels

HDCP

Yes

Rack mounting

No

Product colour

Black

Housing material

Plastic

Built-in display

No

Sustainability certificates

RoHS

Operating temperature (T-T)

0 – 50 °C

Storage temperature (T-T)

-20 – 60 °C

Operating relative humidity (H-H)

0 – 80%

Width

84.2 mm

Depth

83.4 mm

Height

30.4 mm

Weight

360 g

Harmonized System (HS) code

85176200

Console ports

3.5mm headphone, 3.5mm mic, DisplayPort, USB A

Console USB ports quantity

2

USB connector type

Micro-USB B, USB Type-A

HD type

4K Ultra HD

Video bandwidth

30 Hz

LED indicators

Yes

Power source

DC

Power consumption (typical)

1.38 W

Mac operating systems supported

Yes

Ethernet LAN

No

Manual

Yes

Hot-Plug support

Yes

Windows operating systems supported

Yes

Linux operating systems supported

Yes

USB 2.0 ports quantity

2

Audio connections

Yes

Headphone outputs

1

Number of microphone inputs

1

DisplayPorts quantity

1

DisplayPort version

1.1

Wired remote switch

Yes

Cable length

1.2 m

Remote switch cable length

1.8 m

USB powered

Yes

Package width

55 mm

Package depth

155 mm

Package height

225 mm

Package weight

435 g

Master (outer) case net weight

7.2 kg

Master (outer) case width

328 mm

Master (outer) case length

389 mm

Master (outer) case height

330 mm

Master (outer) case gross weight

9.33 kg

Products per master (outer) case

20 pc(s)

Compliance certificates

RoHS

Input voltage

5 V
