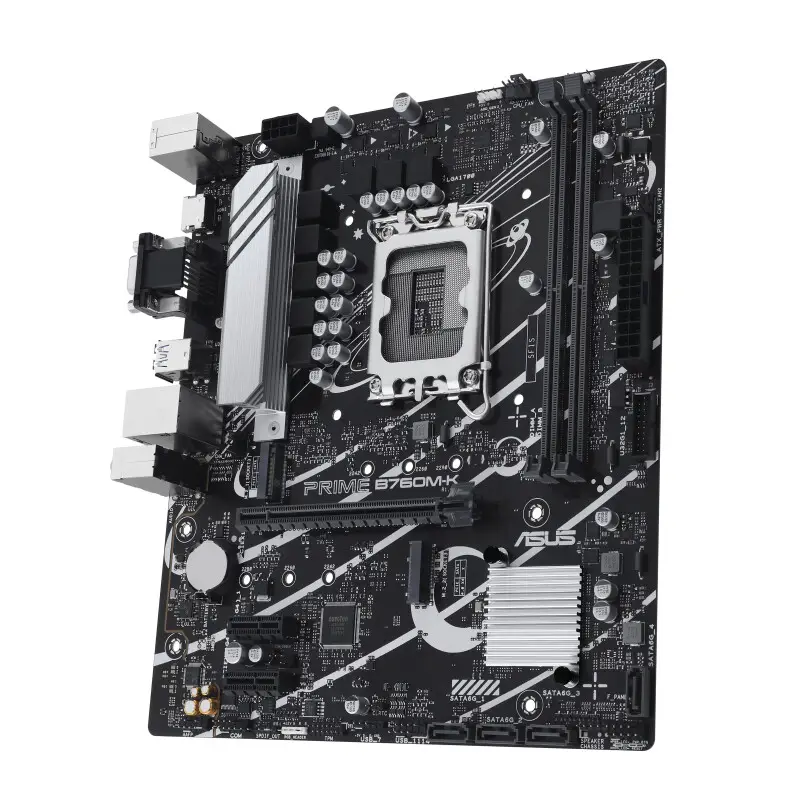

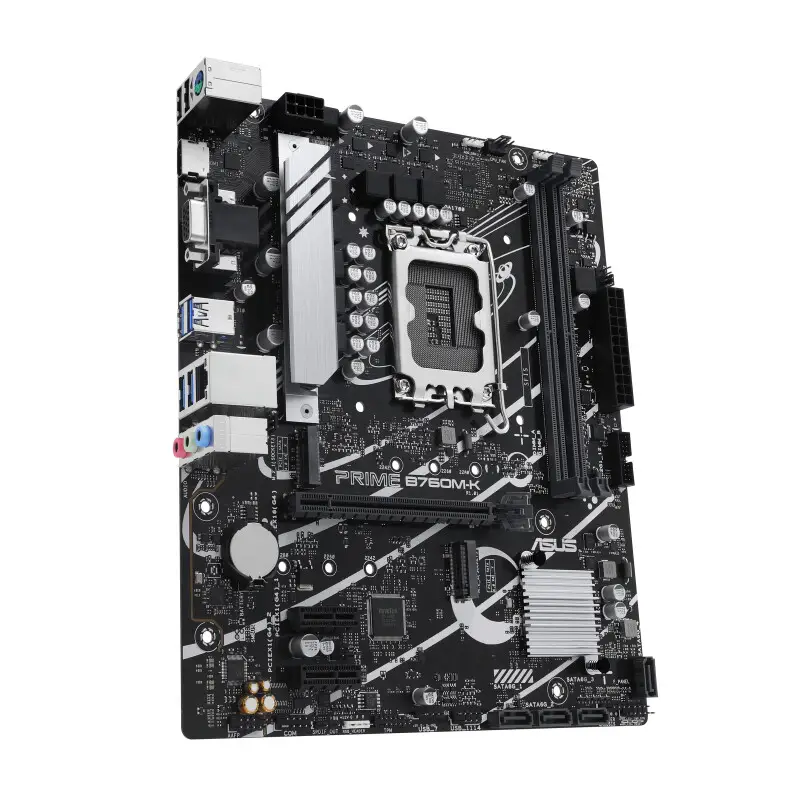

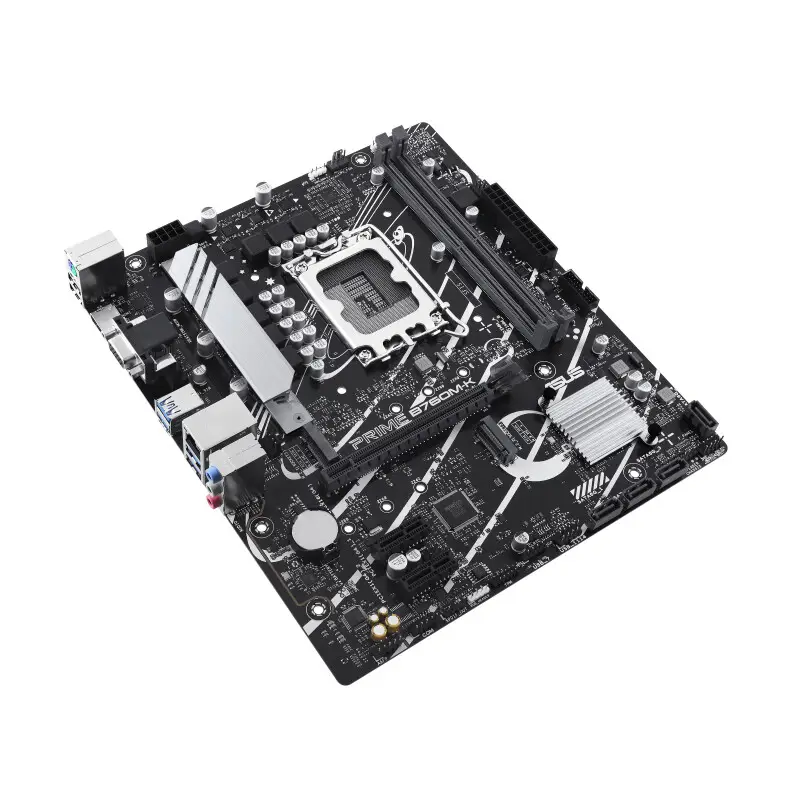

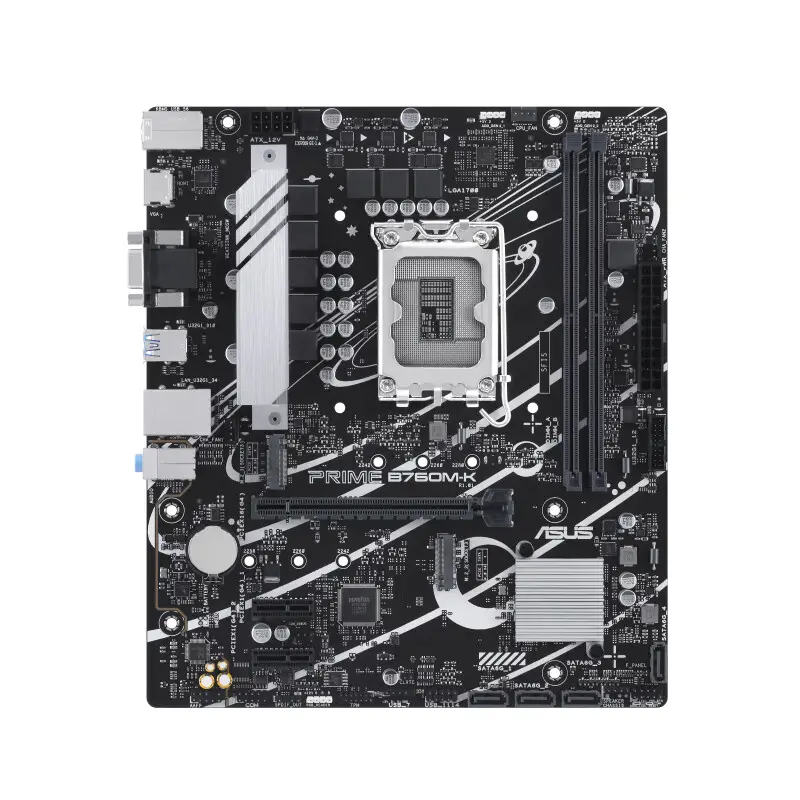

ASUS PRIME B760M-K Intel B760 LGA 1700 micro ATX
Prime B760M-K, an Intel B760 LGA 1700 mATX motherboard with PCIe 4.0, two PCIe 4.0 M.2 slots, DDR5, Realtek 2.5Gb Ethernet, VGA,
- Delivered by tomorrow (order Mon-Fri Delivery times 07:00 - 17:00) *T&C's Apply
- Including shipping costs on orders over R1500
- Major Cities: 2 to 5 working days
Outlying areas: 5-9 working days
- 7 days to change your mind and free returns *T&C's Apply
- Excellent customer service
Description
B760M-K
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-K provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
All-Around Energy Efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
Additional information
| Processor manufacturer | Intel |
|---|---|
| Brand | ASUS |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Supported processor sockets | LGA 1700 |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Maximum internal memory | 96 GB |
| Supported memory clock speeds | 8000,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Parallel processing technology support | Not supported |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Number of M.2 (M) slots | 2 |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Width | 244 mm |
| Depth | 211 mm |
| Maximum number of SMP processors | 1 |
| Memory channels | Dual-channel |
| Supported memory clock speed (max) | 8000 MHz |
| RAID support | Yes |
| Number of SATA III connectors | 4 |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| USB 2.0 ports quantity | 2 |
| S/PDIF out port | Yes |
| PCI Express x16 (Gen 4.x) slots | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| Supported storage drive types | HDD & SSD |
| Number of chassis fan connectors | 1 |
| PS/2 ports quantity | 1 |
| Cables included | SATA |
| 12V power connector | Yes |
| S/PDIF out connector | Yes |
| PCI Express x1 (Gen 4.x) slots | 2 |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| Package width | 270 mm |
| Package depth | 263 mm |
| Package height | 51.5 mm |
| Package weight | 1.01 kg |
| EPS power connector (8-pin) | Yes |
| Number of COM connectors | 1 |
| ECC сompatibility | Non-ECC |
